Renewal of the webCARES Root and new Issuing CA 2017 certificates FAQ's

How do I install the new Issuing CA 2017 certificate into my Java Keystore?

How do I install the webCARES Root and new Issuing CA 2017 certificates into my Mozilla Firefox browser?

I am an End User. How do I install the webCARES Root and new Issuing CA 2017 certificates into my Internet Explorer (IE) browser?

I am an Administrator. How do I install the webCARES Root and new Issuing CA 2017 certificates into my Microsoft IIS web server or application?

We do not use your certificates. Do we still need to install the webCARES Root and new Issuing CA 2017 certificates?

I am an End User and am getting the message "Client Certificate is untrusted or corrupt."

I am an Administrator or developer and am getting the message "Client Certificate is untrusted or corrupt."

My application uses Java. How do I install your webCARES Root and new Issuing CA 2017 certificates so that my Java application will work?



How do I install the new Issuing CA 2017 certificate into my Java Keystore?

  • As an Administrator copy the default Java CA Certificates keystore (cacerts) from the security to bin directory

    1. (Windows Only) Right click on the Command Prompt and chose "Run As Administrator"

    2. Copy "C:\Program Files\Java\jreXXX\lib\security\cacerts" "C:\Program Files\Java\jreXXX\bin" (Note: replace jreXXX with your actual directory name (i.e., jre1.8.0_131)

  • Download the new Issuing CA 2017 certificate

    1. Download the http://www.oaticerts.com/repository/OATIIA2017.crt certificate and save it as C:\Program Files\Java\jreXXX\bin\OATIIA2017.cer

  • Import the new Issuing CA 2017 certificate

    1. C:\Program Files\Java\jreXXX\bin>keytool -import -trustcacerts -alias OATIissuing2017 -file OATIIA2017.cer -keystore cacerts -storepass changeit

    2. Trust this certificate? [no]: Yes Certificate was added to keystore

  • Confirm the new Issuing CA 2017 certificate has been added to the cacerts keystore

    1. C:\Program Files\Java\j2re1.5.0\bin>keytool -list -keystore cacerts -storepass changeit -alias OATIissuing2017

    2. The cacerts keystore should include this entry: oatiissuing2017, Month Day, Year, trustedCertEntry,
      Certificate fingerprint (SHA1): 84:F0:67:56:2C:59:72:15:B3:CF:6B:FD:D3:C7:1F:DF:21:64:BE:F8

    3. As Administrator, copy default CA Certificates keystore (cacerts) from bin directory back to security directory as this is the default location which Java code looks for it

      1. Copy C:\Program Files\Java\j2re1.5.0\lib\security\

Back to top

How do I install the webCARES Root and new Issuing CA 2017 certificates into my Mozilla Firefox browser?

• From the Tools Menu > Options > Advanced section > Certificates tab > "View Certificates" button > Authorities tab

• Click the "Import" button. Find and open the OATI webCARES Root CA file (OATICA2.cer) downloaded from http://www.oaticerts.com/repository/OATICA2.crt

• Select each check box to trust the "OATI webCARES Root CA" for identifying web sites, email users, and software developers, and click OK

• Click the "Import" button. Find and open the webCARES Issuing CA 2017 certificate file (OATIIA2017.cer) downloaded from http://www.oaticerts.com/repository/OATIIA2017.crt

• Select each check box to trust the "webCARES Issuing CA 2017" for identifying web sites, email users, and software developers, and click OK

• Verify the webCARES Issuing CA 2017 and OATI webCARES Root CA are installed under the Open Access Technology International heading

Back to top

I am an End User. How do I install the webCARES Root and new Issuing CA 2017 certificates into my Microsoft IE browser?

OATI is part of the Microsoft Root Certificate distribution program so the webCARES Root and new Issuing CA 2017 certificates will be automatically downloaded during an SSL/TLS session or installed during the normal renewal, export, and installation of your End User certificate by your webCARES Security Officer (by selecting "Include all certificates in the certification path (if possible)".)

Note: If you are an End User and are missing these certificates you can install both of them into your IE browser using the OATIpkiChain4.p7b file. This file can NOT be used to install certificates for applications, programs, etc.

• End Users: Installing the Root & Issuing Certificates

• Download http://www.oaticerts.com/repository/OATIpkiChain4.p7b

• Right click on file and choose “Install Certificate”

• Click “Next”

• Choose “Automatically select the certificate store based on the type of certificate”

Note: The certificates are installed into the currently logged on user's Windows profile. Each Windows user must install the certificates into their own Windows profile.

• Choose “Next,” “Finish,” “OK” (to Security Warning) and “OK”

.

Back to top

I am an Administrator. How do I install the webCARES Root and new Issuing CA 2017 certificates into my Microsoft IIS web server or application?

• Services & Applications: Installing the Root certificate

• Download http://www.oaticerts.com/repository/OATICA2.crt

• Right click on file and choose “Install Certificate”

• Click “Next”

• Choose “Place all certificates in the following store”

• Click “Browse”

• Select “Trusted Root Certification Authorities”

• Click “OK,” “Next,” “Finish,” and “OK”

• Services & Applications: Installing the Issuing CA 2017 certificate

• Download http://www.oaticerts.com/repository/OATIIA2017.crt

• Right click on file and choose “Install Certificate”

• Click “Next”

• Choose “Place all certificates in the following store”

• Click “Browse”

• Select “Intermediate Certification Authorities”, "Local Computer"



• Click “OK,” “Next,” “Finish,” and “OK”.

Back to top

We do not use your certificates. Do we still need to install the webCARES Root and new Issuing CA 2017 certificates?

Yes. If you have a web site, web service, or application which accepts OATI webCARES certificates as part of the login, authentication, or authorization process, then you must install these certificates. If the certificates are NOT installed, an incomplete Certificate Trust List (CTL) will be sent to your users browser (or application) and they will be unable to choose the correct certificate when prompted (i.e., the browser's "Client Authentication" list of certificates will not show any certificates issued from the new CA certificates or an application will give a "certificate untrusted or corrupt" message).

Back to top

I am an End User and am getting the message "Client Certificate is untrusted or corrupt."

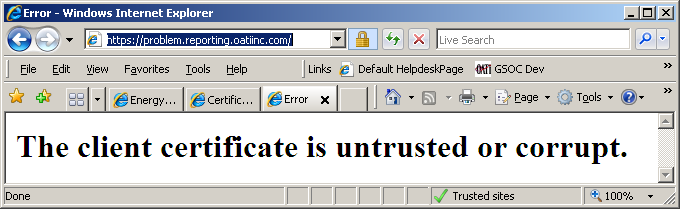

If you are seeing an error displayed in the browser similar to the one below, the first step is to make sure the webCARES Root and new Issuing CA 2017 certificates are installed and present in the correct certificate stores (folders) and try again.

IMPORTANT: These troubleshooting steps are for an End User who is experiencing this issue. If a similar error is found in an application or programs log file, or given in the browser while testing the application, please see the FAQ "I am an Administrator or developer and am getting the message "Client Certificate is untrusted or corrupt."
.


• Step 1: Confirm the webCARES Issuing CA 2017 certificate is present.

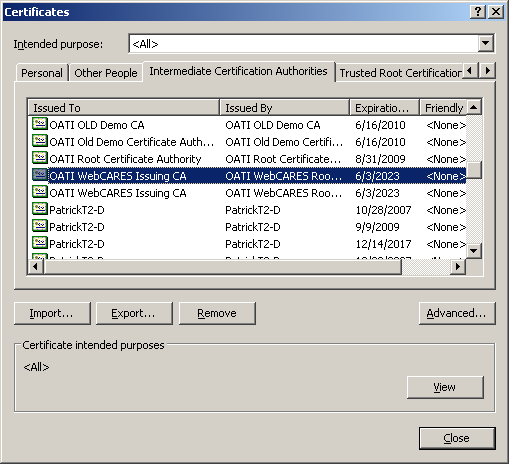

• Internet Explorer > Tools > Internet Options > Content Tab > "Certificates" button > Intermediate Certification Authorities Tab

• Confirm webCARES Issuing CA 2017 is present. If not present, click the "Import…" button and import the certificate downloaded from http://www.oaticerts.com/repository/OATIIA2017.crt



• Delete the OATI webCARES Root CA certificate if it is present in this store. Note: The OATI webCARES Root CA should only be in the Trusted Root Certification Authorities certificate store (folder)

• Step 2: Confirm the OATI webCARES Root CA certificate is present.

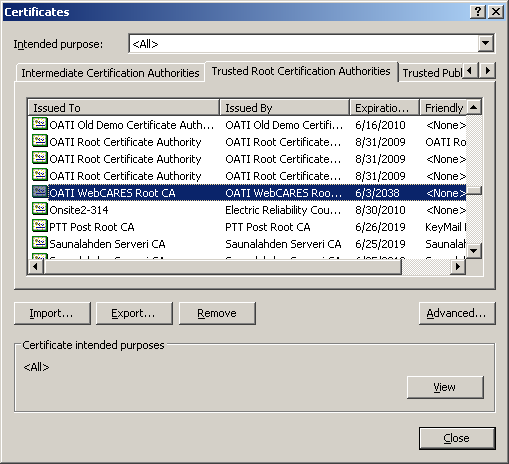

• Internet Explorer > Tools > Internet Options > Content Tab > "Certificates" button > Trusted Root Certification Authorities Tab

• Confirm OATI WebCARES Root CA is present. If not present, click the "Import…" button and import the certificate downloaded from http://www.oaticerts.com/repository/OATICA2.crt



• Delete the webCARES Issuing CA 2017 certificate if it is present in this store. Note: The webCARES Issuing CA 2017 certificate should only be in the Intermediate Certification Authorities certificate store (folder)

• Step 3: If steps 1 and 2 fail to fix the issue please reinstall the webCARES Root CA certificate and webCARES Issuing CA 2017 certificate. Even if these certificates are displayed, there are times when the link between the certificate and the corresponding keys can be broken. Reinstalling the certificate will reestablish this link. Please see the appropriate FAQ "How do I install the webCARES Root and new Issuing CA 2017 certificates into my browser?" for instructions on reinstalling the webCARES Root and new Issuing CA 2017 certificates.

• Step 4: If steps 1, 2, and 3 fail to fix the issue please reboot the machine.

.

Back to top

I am an Administrator or developer and am getting the message "Client Certificate is untrusted or corrupt."

If you are seeing an error displayed in an application log file similar to "Client certificate is untrusted or corrupt" the first step is to make sure the new CA certificates are present in the correct certificate stores (folders) and try again.

IMPORTANT: You must be a Windows Administrator to complete these steps.

• Step 1: Confirm the webCARES Issuing CA 2017 and OATI webCARES Root CA certificates are present.

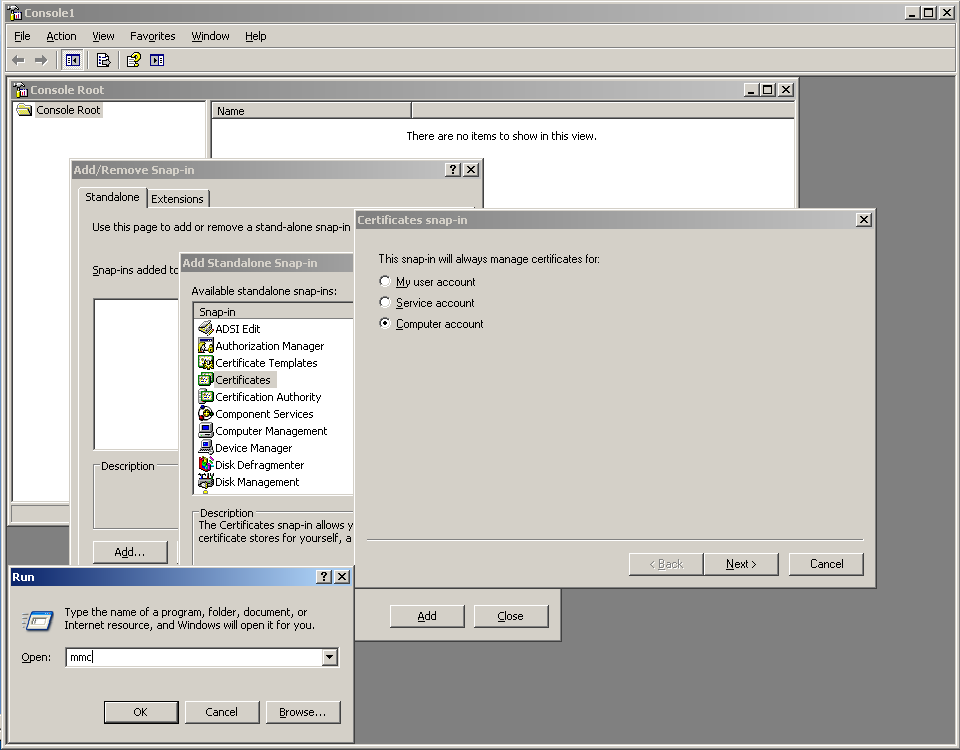

• "Start" button > Run > MMC > "OK" button > this opens a blank Microsoft Management Console

• File > Add/Remove Snap-in > Choose Certificates Snap-in > "Add" button > Computer Account > Next > Local Computer > Finish > Close > OK

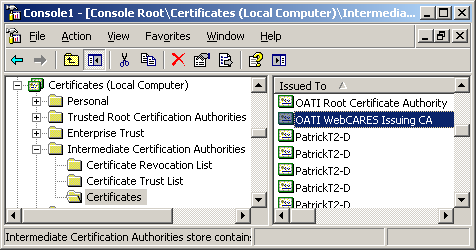

• Click the plus (“+”) sign to expand the Certificates (Local Computer) > Expand the Intermediate Certification Authorities store > Select the Certificates store (folder)



• Confirm webCARES Issuing CA 2017 is present. If not present right click on the Certificates folder and choose Import to import the certificate downloaded from http://www.oaticerts.com/repository/OATIIA2017.crt

• Delete the OATI webCARES Root CA certificate if it is present in this store. Note: The OATI webCARES Root CA certificate should only be in the Trusted Root Certification Authorities certificate store (folder)

• Step 2: Confirm the OATI webCARES Root CA certificate is present.

• "Start" button > Run > MMC > OK button > this opens a blank Microsoft Management Console

• File > Add/Remove Snap-in > Choose Certificates Snap-in > "Add" button > Computer Account > Next > Local Computer > Finish > Close > OK

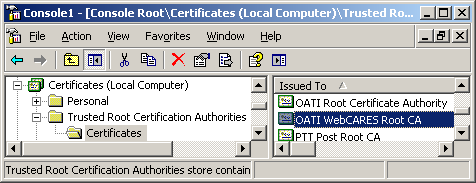

• Click the plus (“+”) sign to expand Certificates (Local Computer) > Expand the Trusted Root Certification Authorities store > Select the Certificates store

• Confirm the OATI WebCARES Root CA is present. If not present right click on the Certificates folder and choose Import to import the certificate downloaded from http://www.oaticerts.com/repository/OATICA2.crt



• Delete the webCARES Issuing CA 2017 certificate if it is present in this store. Note: The webCARES Issuing CA 2017 certificate should only be in the Intermediate Certification Authorities certificate store (folder)

• Step 3: If steps 1 and 2 fail to solve the issue please reinstall the OATI webCARES Root CA certificate and webCARES Issuing CA 2017 certificate. Even if these certificates are displayed, there are times when the link between the certificate and the corresponding keys can be broken. Reinstalling the certificate will reestablish this link. Please see the FAQ "How do I install the webCARES Root and new Issuing CA 2017 certificates into my Microsoft web server or application?" for instructions on reinstalling the webCARES Root and new Issuing CA 2017 certificates.

• Step 4: If steps 1, 2, and 3 fail to fix the issue please reboot the machine

Back to top

My application uses Java. How do I install your webCARES Root and new Issuing CA 2017 certificates so that my Java application will work?

• Go to Step 3 if the OATI webCARES Root CA certificate has already been installed

• Step 1: Download the OATI webCARES Root CA certificate (http://www.oaticerts.com/repository/OATICA2.crt) and save it to your Java bin directory (i.e., C:\Program Files\Java\<jreXXX>\bin\OATICA2.cer)

• Step 2: Add the new Root CA file downloaded in Step 1 to your Java keystore

Note: Your Java Keystore name and password will be different than what is used in this example.

C:\Program Files\Java\jreXXX\bin>keytool -import -trustcacerts -alias OATIroot2038 -file OATICA2.cer -keystore cacerts -storepass changeit

Owner: CN=OATI WebCARES Root CA, O=Open Access Technology International Inc, L=Minneapolis, ST=MN, C=US

Issuer: CN=OATI WebCARES Root CA, O=Open Access Technology International Inc, L=Minneapolis, ST=MN, C=US

Serial number: 25762066a7560874f9004bfa1c82841

Valid from: Tue Jun 03 14:28:31 CDT 2008 until: Thu Jun 03 14:36:00 CDT 2038

Certificate fingerprints:

MD5: 70:0C:AA:D0:49:E7:7B:0B:EB:93:77:FA:57:1D:19:73

SHA1: 4B:6B:D2:D3:88:4E:46:C8:0C:E2:B9:62:BC:59:8C:D9:D5:D8:40:13

Trust this certificate? [no]: y

Certificate was added to keystore

• Step 3: Download the new webCARES Issuing CA 2017 certificate (http://www.oaticerts.com/repository/OATIIA2017.crt) and save it to your Java bin directory (i.e., C:\Program Files\Java\jreXXX\bin\OATIIA2017.cer)

• Step 4: Add the new Issuing CA 2017 file to your Java keystore

Note: If the OATI webCARES Root CA certificate is not already added to the keystore then you MUST add new Root CA certificate first (see Steps 1 and 2 above). To see if the OATI webCARES Root CA Certificate is installed, run Step 5 below.

Note: Your Java Keystore name and password may be different then what is used in this example.

C:\Program Files\Java\jreXXX\bin>keytool -import -trustcacerts -alias OATIissuing2017 -file OATIIA2017.cer -keystore cacerts -storepass changeit

Trust this certificate? [no]: Y

Certificate was added to keystore

• Step 5: Confirm the webCARES Root and new Issuing CA 2017 Certificates are present in the Keystore:

Note: Your Java Keystore name and password may be different then what is used in this example and you may have a different number of entries. Please confirm you have the "oatiroot2038" and "oatiissuing2017" entries.

C:\Program Files\Java\jreXXX\bin>keytool -list -keystore cacerts -storepass changeit

oatiroot2038, Month Day, Yr, trustedCertEntry,

Certificate fingerprint (MD5): 70:0C:AA:D0:49:E7:7B:0B:EB:93:77:FA:57:1D:19:73

oatiissuing2017, Month, Day, Yr, trustedCertEntry,

Certificate fingerprint (SHA1): 84:F0:67:56:2C:59:72:15:B3:CF:6B:FD:D3:C7:1F:DF:21:64:BE:F8

.

Back to top
